3 Spindles CNC router for woodworking

FOB Reference Price:Get Latest Price
$11,000.00 - $12,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
1325
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3900 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Home Use, Retail, Advertising Company, wood working door ,cabinet ,kitchen
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Delilai
Voltage:
220V
Power(W):
9KW
Dimension(L*W*H):
3200*2000*2200mm
Weight:
1200kg
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Working area:
1300*2500*200mm
X,Y,Z location precision:
±0.03/300mm
X,Y,Z rails and transmission:
Taiwan Hiwin square rail and TBI ball screw
Spindle:
Water Cooling Spindle
Max Transmission speed:
20m/min
Max working speed:
15m/min
Spindle speed:
0-18000rpm/min
Control system:
Weihong NK 105
Working Temperature:
Temperature: 0℃~45℃ Relative Humidity: 30%~75%
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3900 To be negotiated
Product Description

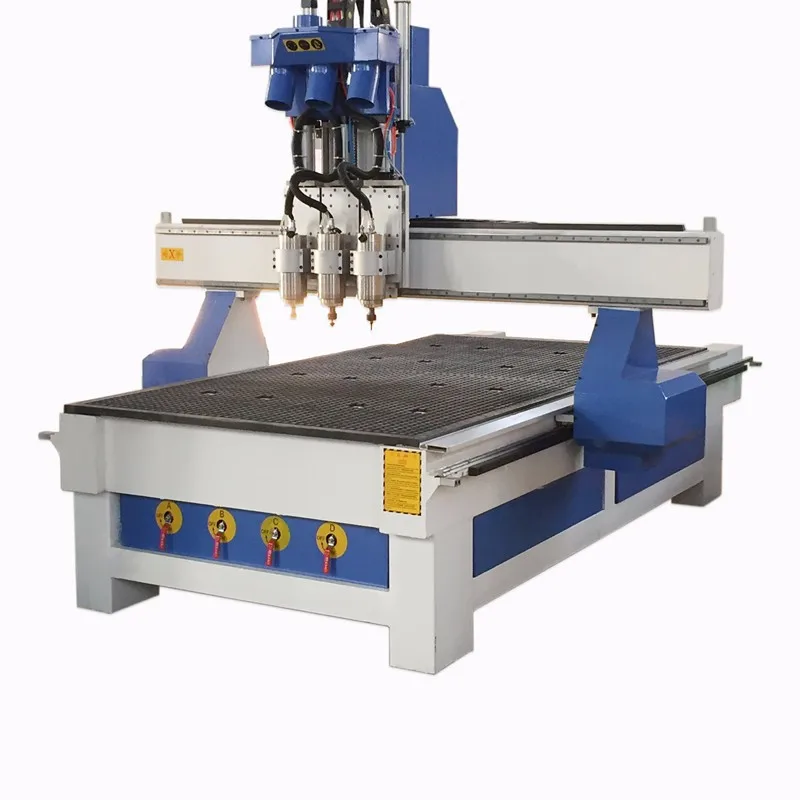

This is 3 heads CNC Router, and suitable for mass processing of solid woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates and other materials.

Model NO.
1325-3 CNC Router
X Y Z Traveling Area
1300*2500*200mm
Spindle power
3.0kw
X,Y,Z location precision
±0.03/300mm
Table
vacuum table
Body
8mm heavy duty body
X,Y,Z rails and transmission
Taiwan Hiwin square rail and TBI ball screw
Max Transmission speed
20000mm/min
Max. Working Speed
15000mm/min
Spindle rate
0-18000RPM
Motor
Leadshine steeper motor and driver
Working volatge
AC220V/50/60Hz(option)
Gode
G Code
Control Cystem
Weihong NK 105
Connect
USB
Software
Type3, Ucancam, Artcam
Running
0 - 45 Centigrade
Relative Humidity
30% - 75%
Products Show
Our Factory
Packing & Delivery
Our Certifications
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
