Automatic Heavy duty Wide belt wood Sander R-RP 1000 sanding machine

FOB Reference Price:Get Latest Price
US $5,000-8,000 / Set | 1 Set/Sets sanding machine (Min. Order)
Supply Ability:
100 Set/Sets per Month sanding machine
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DELILAI
Model Number:
R-RP1000
After-sales Service Provided:
Engineers available to service machinery overseas
Working width:
3-110mm
Speed of feed belt:
6-30m/min
First motor:
5.5, 11, 22, 37, 45kw
Second motor:
5.5, 7.5, 15, 22, 30kw
Third motor:
11, 22kw
First roller:
190, 240mm
Second roller:
190, 240mm
Working air pressure:
0.55Mpa
Color:
White
Product name:
Automatic Heavy duty Wide belt wood Sander R-RP 1000 sanding machine
Packaging & Delivery
Packaging Details
standard package
Delivery Time
within 20 days after payment
Product Description

Factory direct wholesale wood wide belt sanding machine

This machine is one of the necessary equipment for thickness adjustment, fine sanding, and polishing of fiberboard, shaving board, plywood board, man-made board and panel-type material. It is with high precision,easy and safe operation

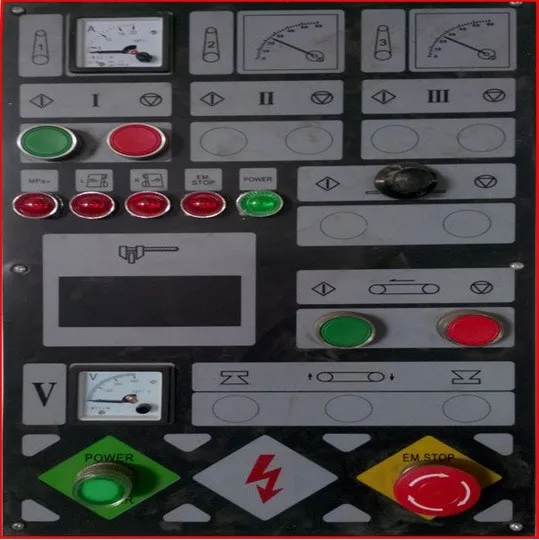

The main parts are all imported or from famous brand products. The light-sense and electronic control system is equipped.

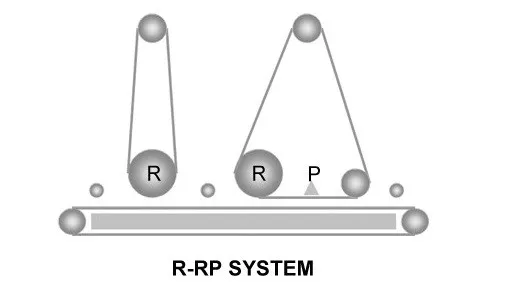

Sturcture: R-RP1000 structure (3 rollers and 1 pad)

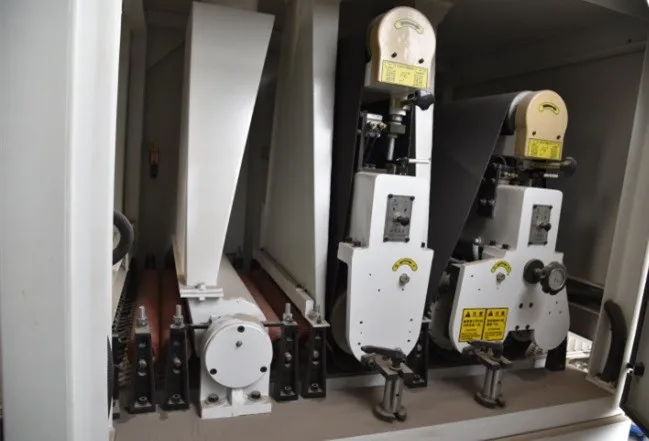

The front and middle rollers are adjustable steel rollers,the back rollers isrubber one with sanding pad,adjustable.Rollers can be changed for different ways for sanding.

Working width
450,630,1000,1300,1600mm
Working thickness
3-110mm
Speed of feed belt
6-30m/min
 First motor
5.5, 11, 22, 37, 45kw
 Second motor
5.5, 7.5, 15, 22, 30kw
Third motor
11, 22kw
 Lifting motor
 0.37, 0.55kw
 First roller
190, 240mm
 Second roller
190, 240mm
Third roller
210mm
Abrasive belt size
470*1930, 650*1930, 1020*2020, 1320*2220mm
Volume of dust
8000, 9600, 14000m³/h
Working air pressure
0.55Mpa
Overall dimensions(LXWXH)
1800*950*2000, 2700*2100*2100, 3000*2400*2100mm
Weight
 1100, 2200, 3200, 5300, 6500kg
