Fully automatic edge banding machine for woodworking

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US $9000.00
  • 5 - 9 Sets
    US $8700.00
  • >=10 Sets
    US $8500.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Delilai
Model Number:
R7
After-sales Service Provided:
Engineers available to service machinery overseas
Banding type thickness:
0.4-3mm
Banding type width:
10-60mm
Workpiece thickness:
10-60mm
Workpiece length:
≥100
Workpiece width:
≥50
Feeding Motor Power:
2.2Kw
Feeding Speed:
13m/min
Air Pressure:
0.7Mpa
Packing Size:
5000*1000*1600mm
Weight:
1870kg
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging Details: plywood box
Port
Qingdao
Lead Time :
Within 20 days after paid

Fully automatic edge banding machine for woodworking



Production Description



      Edge Banding machine work is a process and an associated narrow strip of material used to create durable and aesthetically pleasing trim edges during finish carpentry. Edge banding is used to cover the exposed sides of materials such as plywood, particle board or MDF, increasing durability and giving the appearance of a solid or more valuable material. Common substitutes for edge banding include face frames or molding. Edge banding can be made of different materials including PVC, ABS, acrylic, melamine, wood or wood veneer.

      Traditional edge banding was a manual process requiring ordinary carpentry tools and materials. In modern applications, particularly for high-volume, repetitive manufacturing steps such as cabinet doors, edge banding is applied to the substrate by an automated process using a hot-melt adhesive.



      Because of the needs of the market, automatic edge banding machines were used in wood products processing widely.

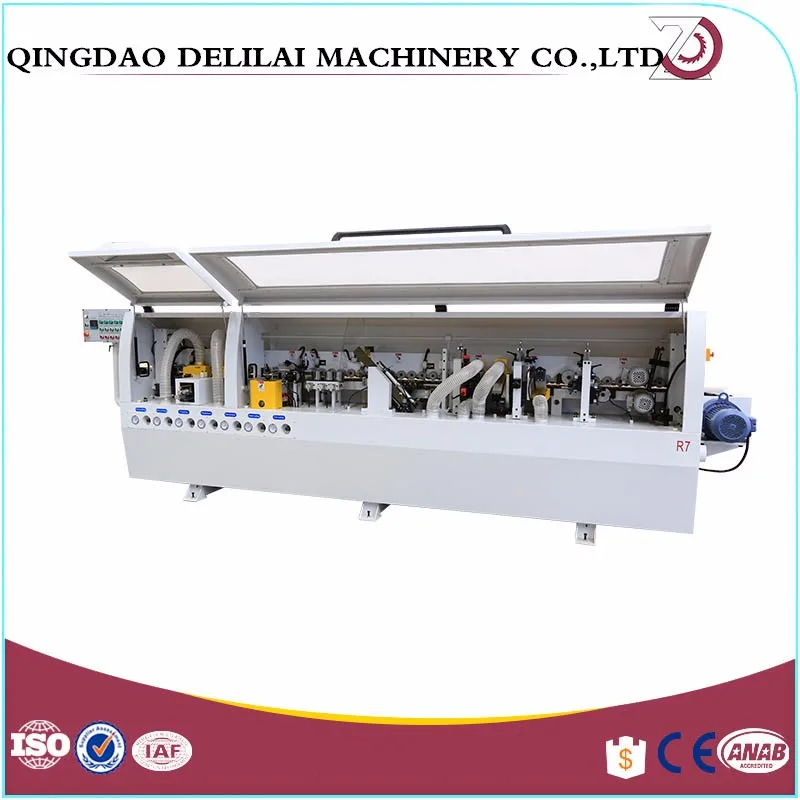

Production Show

Edge banding machine.jpg



Function

Pre-milling → Gluing  End trimming  Rough trimming → Fine trimiming    Scraping  Buffing

Specification



Banding tape thickness
0.4-3mm
End trimming motor
0.55kw*2
Banding tape width
10-60mm
Rough trimming motor power
0.75kw*2
Workpiece  thickness
10-60mm
Fine trimming motor power
0.75kw*2
Workpiece length
>=100mm
Polishing motor power
0.18kw*2
Workpiece width
>=50mm
Feeding speed
13m/min
Heating power
1.5kw
Air pressure
0.7Mpa
Feeding motor power
2.2kw
Total power
10.63kw
Pre-milling motor power
1.5kw*2
Overall dimension
5000*1000*1600mm
Glue spreading motor power
0.37kw
Weight
1870kgs



Detailed Image

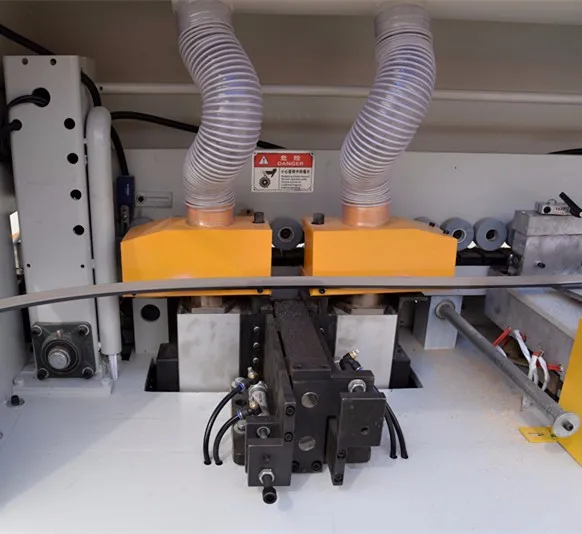

1. Per-milling

The pre-milling part is equipped with double trimming blades which works on the waved offect  that is caused by precise panel saw

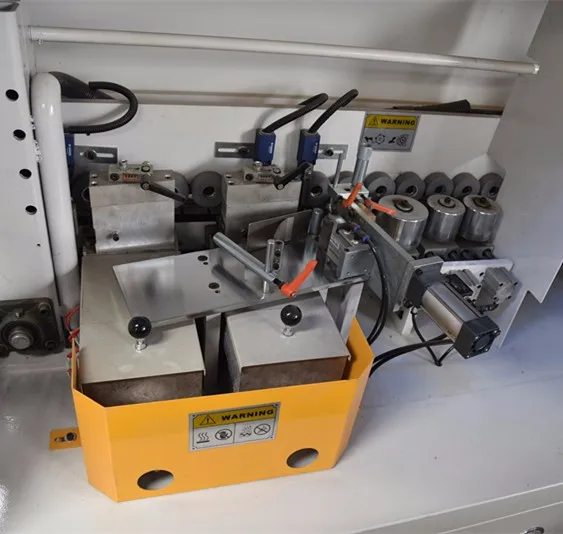

2. Gluing

The glue mechanism adopts a special  structure to gelatinize the plated and costing materials  unifornly, which ensures a more solid conglutination.

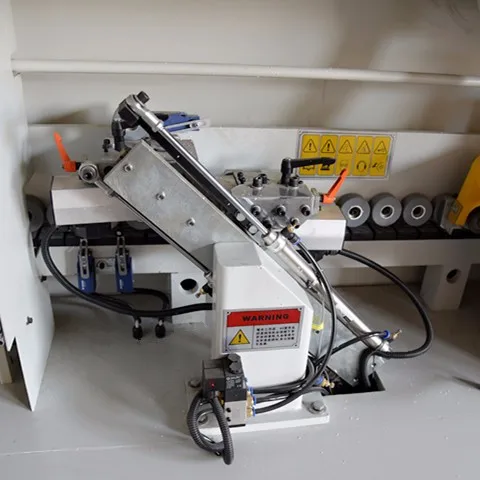

3.End trimming

For end trimming mechanism, it is through a precise guide track to move, and it adopts automatic tracking.The  fast cutting structure of high frequency motor can unsure the cutting surface smoothly.

End trimming.jpg

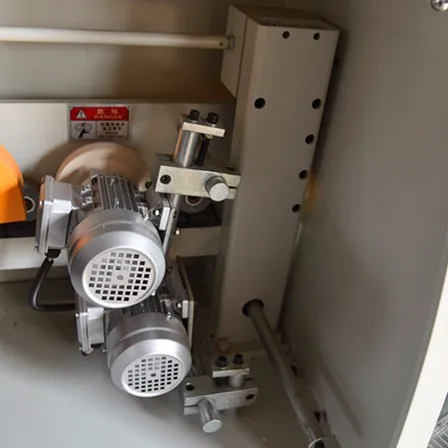

4.Buffing

It uses the cotton polishing wheel to polish the processed board, which makes the edge banding more smooth.




Producion Process
